Focusrite RedNet AM2 – Dante-Powered Stereo Monitoring & Headphone Hub

RedNet AM2 brings clean, flexible monitoring to any Dante audio-over-IP setup. With high-fidelity Dante-to-analogue conversion, headphone and balanced line outputs, and power via PoE or DC, it’s the perfect desk or stage companion—adding pro-grade audio monitoring wherever you need it at Soundium.

Características principales

• High-quality Dante stereo receiver: Pristine Dante-to-analogue conversion, delivering 24-bit/96 kHz audio with over 118 dB dynamic range via XLR or headphones
• Power-over-Ethernet plus DC power: Single cable for audio, power, and control, or use the included 12 V DC supply for greater flexibility

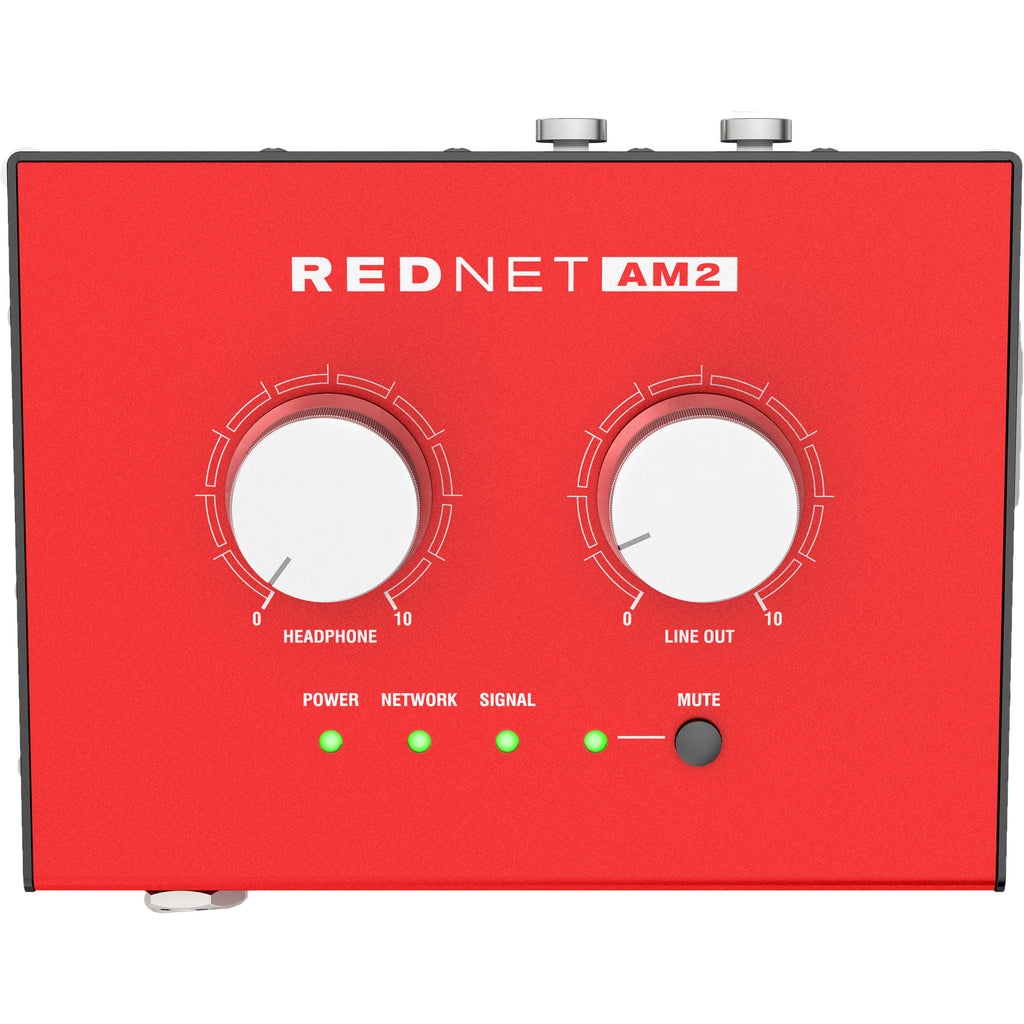

• Independent level control: Large top-panel knobs for headphone and line/output, plus a mute button with LED for safe speaker cut-off

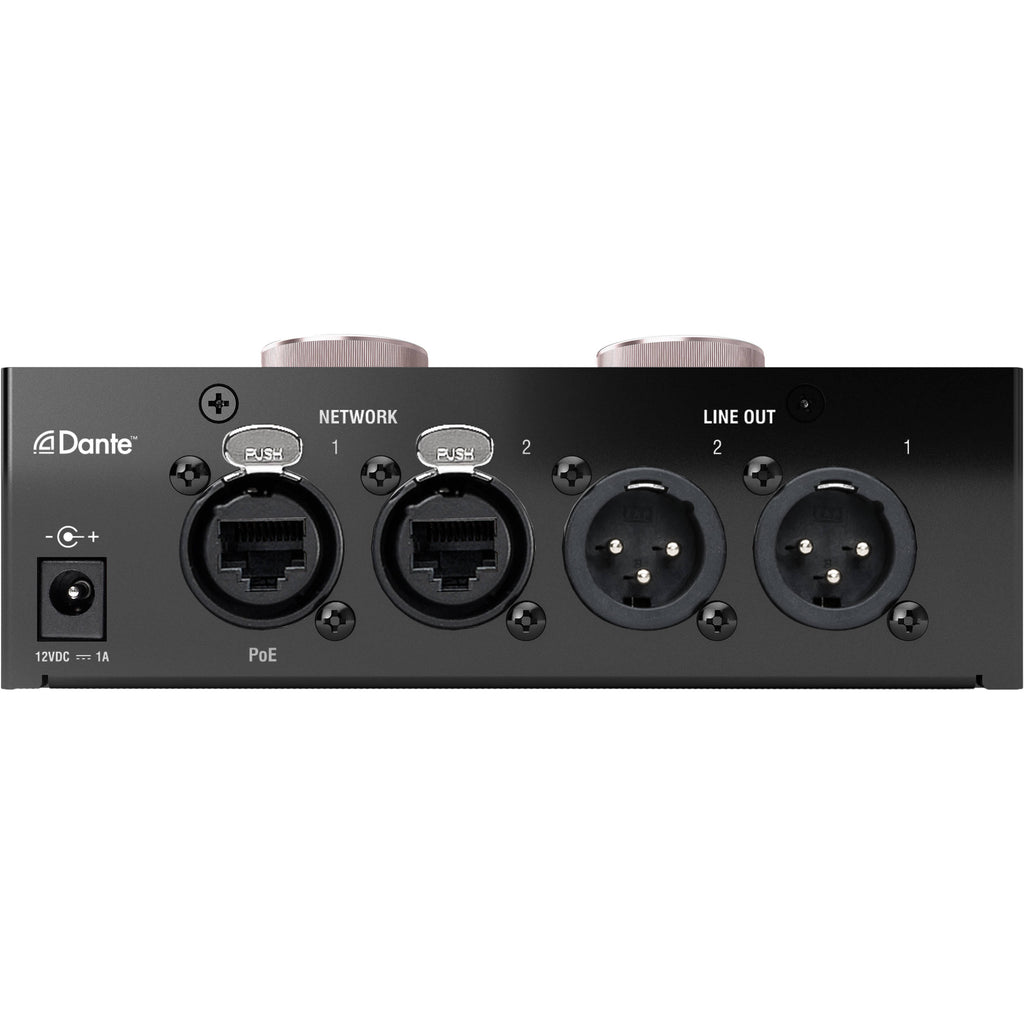

• Integrated network switch: Two etherCON ports let you daisy-chain devices—ideal for cleaner setups and easier routing
• Rugged aluminum chassis with mic-stand mount: Road-ready build with non-slip feet and a 3/8″ threaded base for flexible placement
• Status indicators: LEDs for power status (PoE vs DC), network connectivity, and signal levels (red/orange/green) for instant visual feedback

Beneficios

Whether you're mixing on headphones or passive speakers, RedNet AM2 adds immediate, high-fidelity monitoring—perfect for Dante studios, broadcast booths, or stage setups. PoE simplifies cabling, and the mute switch protects listening environments. With intuitive controls and rugged design, it’s a plug-and-play pro solution for delivering critical audio where you need it.

Especificaciones rápidas

• Dante I/O: 2-channel Dante receiver with dual EtherCON (GbE), integrated network switch
• Headphone Output: ¼″ stereo TRS, 19 dBm reference, drives 32–600 Ω cans, dynamic range ≈118 dB
• Line Outputs: 2 × XLR, switchable reference levels: +18 or +24 dBu, dynamic range ≈120 dB, 20 Hz–20 kHz ±0.05 dB
• Controles: Independent volume knobs for headphones and line; mute button with LED; signal and network status LEDs
• Clocking: Internal clock or Dante network master
• Power: PoE (IEEE 802.3af Class 0, ~11 W) or included 12 V DC adapter (~9.8 W)
• Dimensiones: approx. 140 × 106.5 × 48 mm
• Peso: approx. 0.81 kg

What’s in the Box

• RedNet AM2 desktop monitoring unit
• 12 V DC power supply
• Power-over-Ethernet capability (PoE)
• Guía de inicio rápido

Casos de uso

Ideal for Dante-equipped studios, broadcast booths, live performance setups, or location stages where clean headphone or speaker monitoring is needed without extra gear. Perfect for use as a compact monitor hub in control rooms, FOH desks, or streaming station setups.

Compatibilidad

Works seamlessly within Dante audio-over-IP networks, fully controllable via Dante Controller software. Provides analogue outputs that integrate with any standard monitoring chain. PoE or DC options offer setup flexibility for live, studio, or mobile applications.

Ventajas y desventajas

✅ Ventajas:

• High-precision Dante-to-analogue monitoring in headphones and speakers
• PoE reduces cable clutter; DC option adds flexibility
• Compact yet rugged, easily mounted or desk-placed
• Mute button offers immediate control over speaker output

⚠️ Desventajas:

• Only provides Dante receive—no local analog inputs for mixing
• Requires Dante network infrastructure (software and network knowledge necessary)
• No display or onboard mixing—pure monitoring interface

RedNet AM2 puts powerful Dante stereo monitoring in a rugged, compact package. It’s the smart, minimal solution for pro-grade monitoring wherever your network takes you—only at Soundium.
