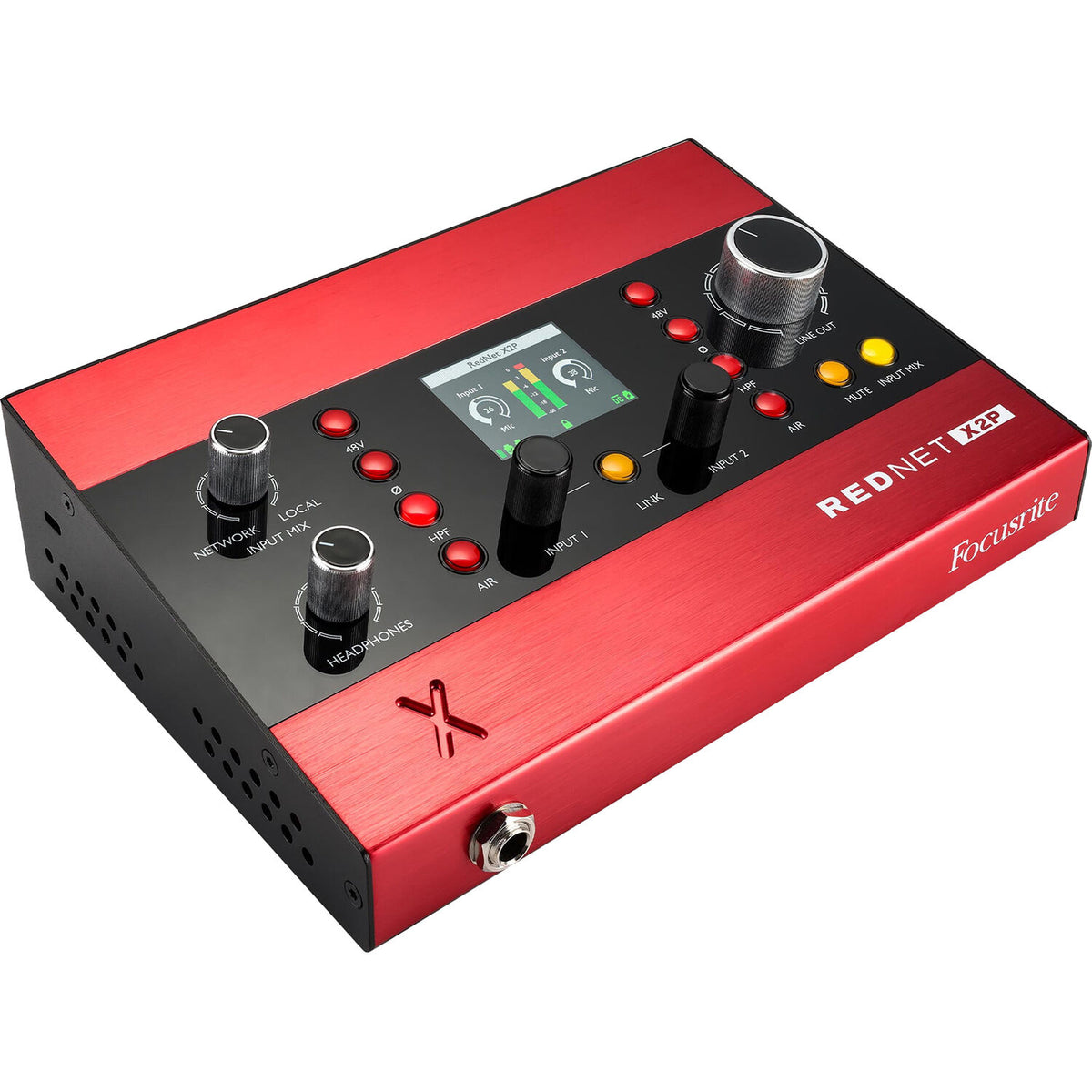

Focusrite RedNet X2P – Portable 2x2 Dante I/O with Studio-Grade Monitoring

RedNet X2P delivers powerful audio flexibility in a compact Dante-enabled unit. It adds two clean Red Evolution mic/line/instrument pres, stereo line and headphone outputs, and mixing control—all over a single Ethernet cable via Power-over-Ethernet. Rugged and portable, it’s ideal for mobile studios, breakout rooms, or expanding any networked setup—only at Soundium.

Características principales

• Two Red Evolution mic pres with Air, HPF, phase, phantom, stereo link: Capture vocals, instruments, or DI sources with console-style clarity and character
• Single-cable PoE operation: Power, Dante I/O, and remote control via one Ethernet cable—clean setup, no extra power bricks
• High-performance conversion (24-bit, up to 96 kHz): Converter dynamic range exceeds 118 dB for pristine fidelity
• Local input mixer and crossfader: Blend local sources with network audio for latency-free “more-me” headphone mixes
• Control lockout modes: Secure mic pre or output controls so users can’t accidentally change important settings
• Mic-stand mountable and daisy-chainable: Built from robust metal, mount it on a stand or chain multiple units without a network switch

Beneficios

RedNet X2P puts powerful connectivity and monitoring tools at your fingertips—without cluttering your rig. Whether recording in remote booths, on location, or streaming in networked setups, the PoE-driven design and local mix options simplify workflow. The true-to-life preamps capture performance with depth, the headphone amp handles high-impedance cans, and the rugged build ensures reliability in any situation.

Especificaciones rápidas

• Analog Inputs: 2 × combo XLR-¼″ (mic/line/instrument) with ±phantom, phase, HPF, Air Mode, gain up to 68 dB
• Analog Outputs: 2 × XLR line outputs (up to +24 dBu), 1 × ¼″ TRS headphone out with independent level
• Conversion: 24-bit / up to 96 kHz, dynamic range ≈118 dB
• Dante I/O: Dual etherCON ports for Dante audio + PoE power; daisy-chain capable
• Controles: Input gain knobs, output and headphone levels, local/network mix crossfader, lockout modes
• Displays: LCD shows levels, status, network flags, and lock status
• Power: PoE (IEEE 802.3af) or included DC power supply
• Dimensiones: ~203 mm × 105 mm × 48 mm; weight ~1.0 kg

What’s in the Box

• RedNet X2P Dante audio interface
• DC power supply
• Ethernet cable
• Software bundle: RedNet Control, RedNet PCIe drivers, Audinate Dante Controller

Casos de uso

Perfect for mobile and studio setups that need high-quality mic/line capture and monitoring over Dante. Ideal for remote booth integration, podcast or voice-tracking rigs, and expanding I/O in Dante systems with pro-level signal fidelity.

Compatibilidad

Seamlessly integrates with any Dante audio-over-IP ecosystem, including RedNet and third-party Dante devices. Powered via PoE or DC. Controlled via RedNet Control and compatible with Dante Controller on Mac or Windows. Works with standard DAWs via Dante Virtual Soundcard or PCIe card.

Ventajas y desventajas

✅ Ventajas:

• Compact yet resilient—perfect for field or room-based audio capture
• Mix local and network signal sources on the fly for monitoring flexibility
• PoE simplifies cabling and setup significantly
• Secure lockout ensures no accidental changes during sessions

⚠️ Desventajas:

• Requires Dante infrastructure and PoE capability
• Limited to 2 channels of local I/O—more for expansion than primary interface
• Setup workflow involves installing Dante and RedNet software

RedNet X2P gives your Dante setup immediate mic/line capture and refined monitoring in a clean, portable form. For streamlined hybrid recording spaces and pro-grade breakout sessions, it’s the smart, efficient choice—find it at Soundium.
