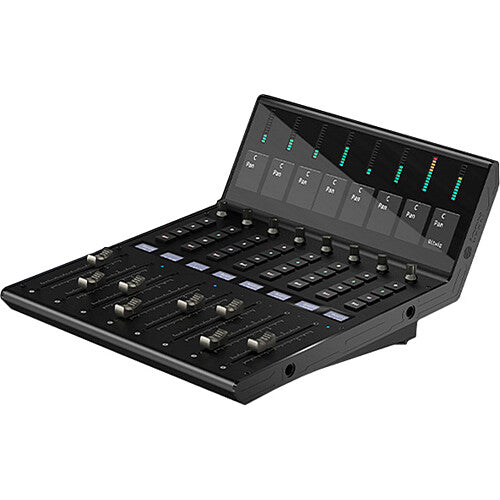

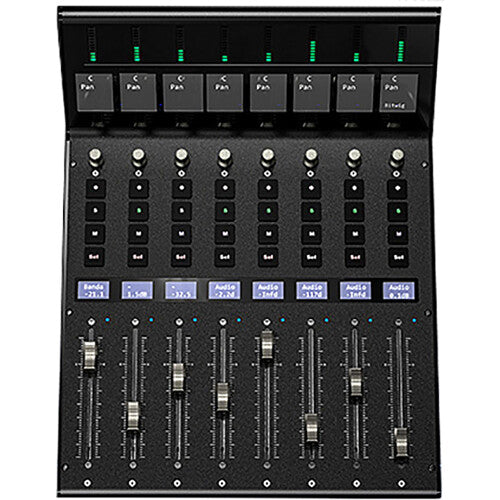

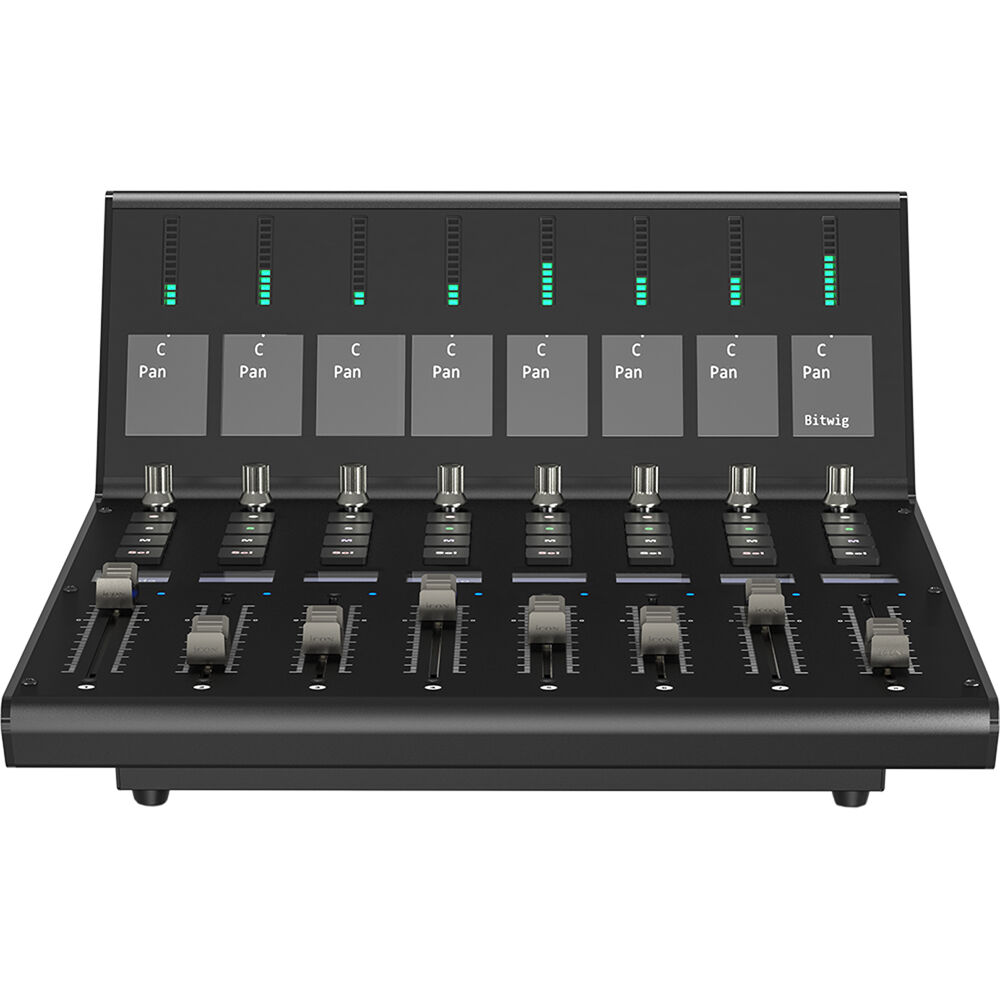

iCON V1-X – DAW Control Extender (8-Channel Expansion for V1-M)

Expand your DAW’s tactile control setup with the V1-X—an 8-channel extender for the iCON P1-M (sometimes referred to as V1-M). Add precision and efficiency to your mixing workflow with motorised faders, encoder knobs, displays, and more—without changing banks as often.

Key Features

• Eight motorised 100 mm faders: Touch-sensitive, 12-bit resolution for detailed control and automation.
• Eight dual-function encoder knobs: Rotate for parameter adjustments; push to select—ideal for plugins and sends.
• Textual feedback displays: Includes a primary TFT screen displaying channel names, parameters, and colour coding, plus secondary 1.1″ TFT panels per channel—content depends on your DAW.
• LED meter bridge: Clear, zero-latency visual metering of levels for fast reference during sessions.
• Illuminated channel controls: Dedicated buttons for mute, solo, select, and record—visible in low light.
• DAW protocol compatibility: Supports Mackie Control Universal and HUI for seamless integration with major DAWs like Pro Tools, Logic Pro, Ableton Live, Cubase, Studio One, and more.
• Custom mapping via iMAP: Tailor assignments, macros, and commands with iMAP software.
• USB-C connection: High-speed connection for data and firmware updates.
• Rugged, studio-ready chassis: Solid metal housing with Kensington lock port ensures security and long-term durability.

Customer Benefits

The V1-X extends your P1-M with hands-on control over more channels—without increasing desk clutter. Flick less between banks, improve workflow speed, and see visual feedback directly where your hands are, keeping you focused and creative throughout complex sessions.

Quick Specs

• Faders: 8 × 100 mm motorized; 12-bit resolution
• Displays: Main TFT screen + eight 1.1″ TFT channel panels

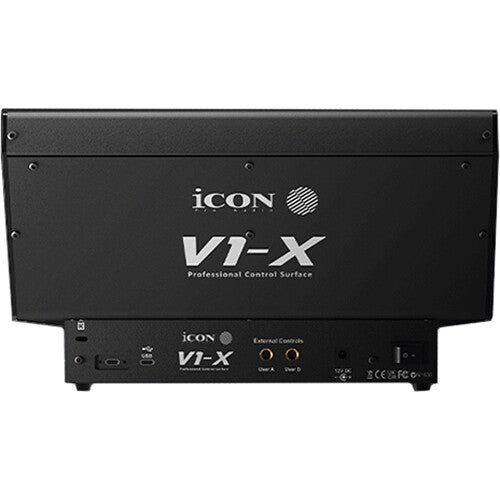

• Connections: USB-C to computer; DC 12 V / 2.5 A power input
• Weight: ~3.62 kg
• Dimensions: 38.45 × 30.9 × 17.8 cm

What’s in the Box

• 1 × iCON V1-X DAW Control Extender
• USB-C connection cable
• 12 V / 2.5 A DC power adapter
• Quick-start guide & warranty documentation

Use Cases / Ideal For

Ideal for producers, engineers, and music creators who need extended hands-on control beyond their base controller. Perfect for large-format mixing, detailed automation work, and long song sessions where bank switching slows your flow.

Compatibility

Designed to expand the iCON P1-M (V1-M) control surface. Fully compatible with DAWs that support Mackie Control Universal or HUI. Customizable mappings available via iMAP. Expandable to support up to 64 channels depending on your DAW.

Pros & Cons

✅ Pros:

• Immediate access to eight extra channels of tactile control
• Detailed visual feedback directly on hardware
• Sturdy build and flexible mapping enhance performance workflow

⚠️ Cons:

• Only works when connected to an iCON P1-M base controller
• Functionality depends on DAW metadata support

The iCON V1-X offers serious power for serious workflows—exponentially expanding your DAW’s control capacity with efficiency and finesse.
