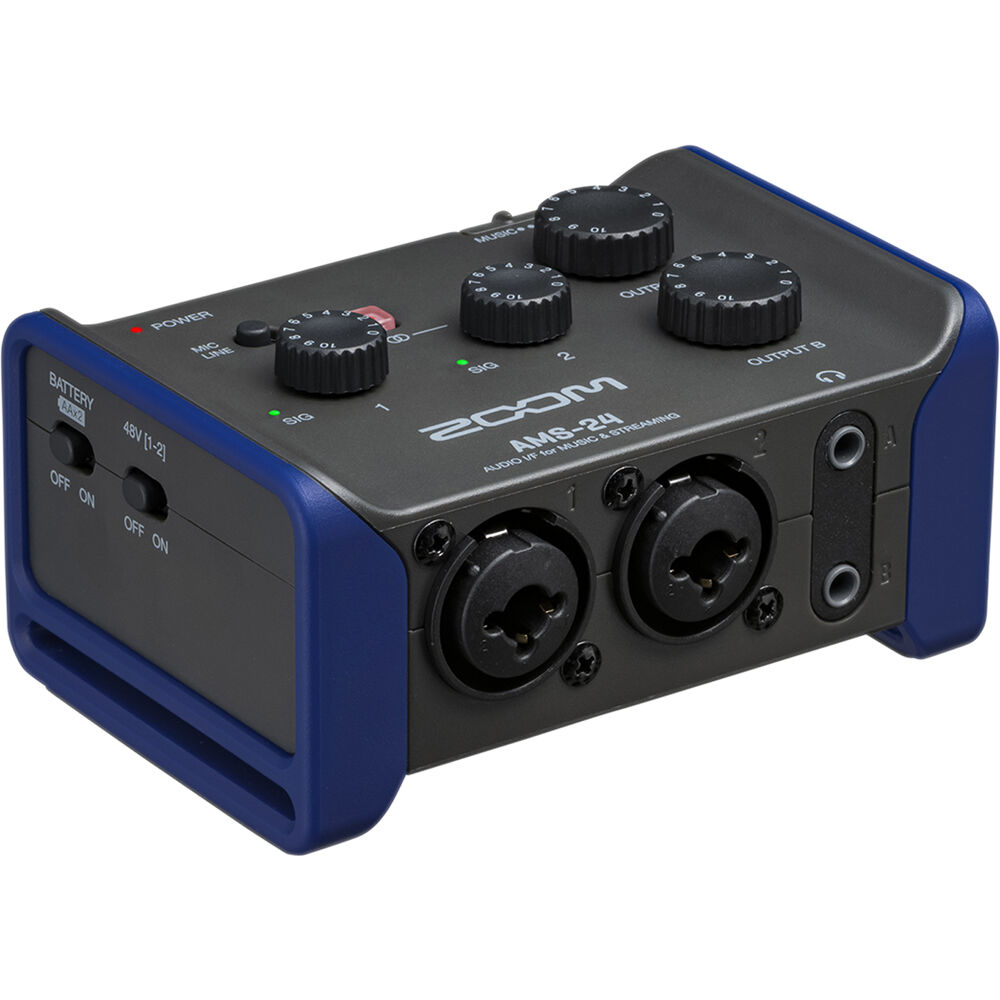

Zoom AMS-24 – Portable 2-in / 4-out Audio Interface for Streaming & Recording

The Zoom AMS-24 is a compact, highly capable interface designed for creators who juggle music, podcasts, and live streaming. With dual XLR/TRS inputs, dual headphone outputs, TRS monitor outs, and direct USB-C connectivity, it brings pro-level routing and monitoring options in a very portable form.

Key Features

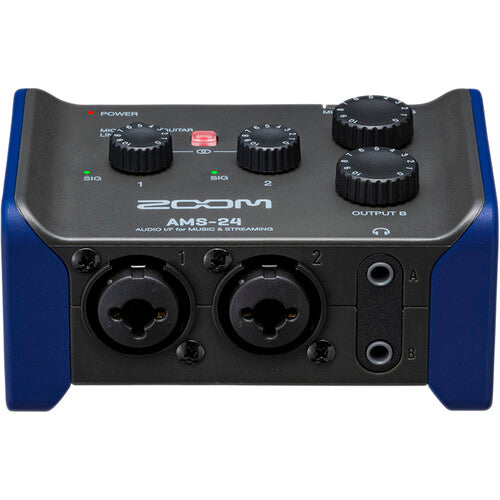

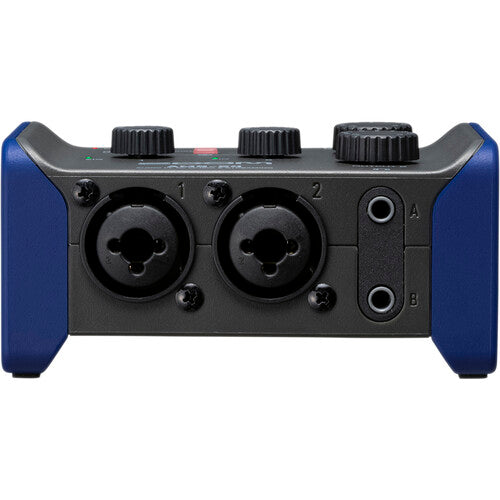

• Dual XLR/TRS combo inputs: Accept microphones, instruments, or line-level sources with dedicated gain control and Hi-Z option on input 1
• 24-bit / 96 kHz support: High-resolution recording for detailed sound capture

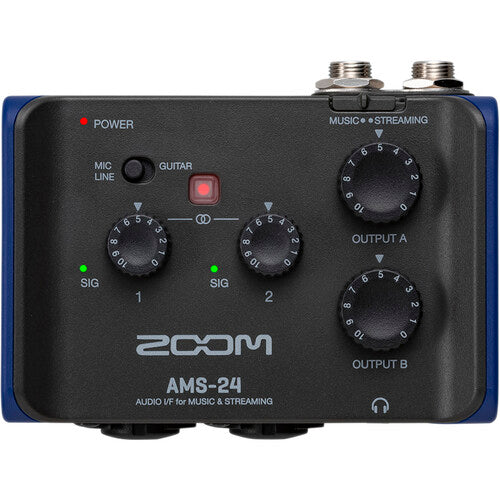

• Music / Streaming mode switch: Toggle between independent input routing (for DAW tracking) or unified mix (for livestreaming)

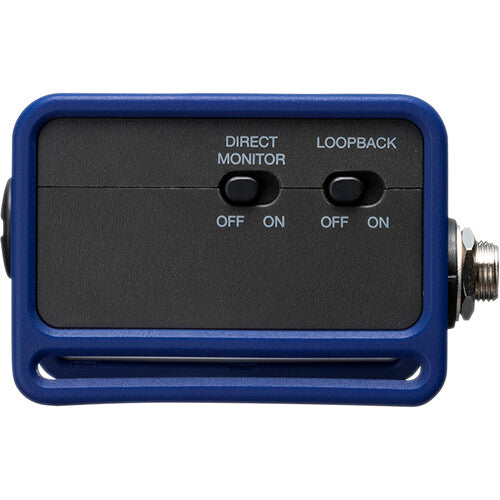

• Direct monitoring and loopback hardware switches: Monitor with zero latency, or mix playback and input signals for livestreaming and overdubs
• Dual headphone outputs + stereo TRS monitor outs: Separate monitoring for two users plus output to powered monitors

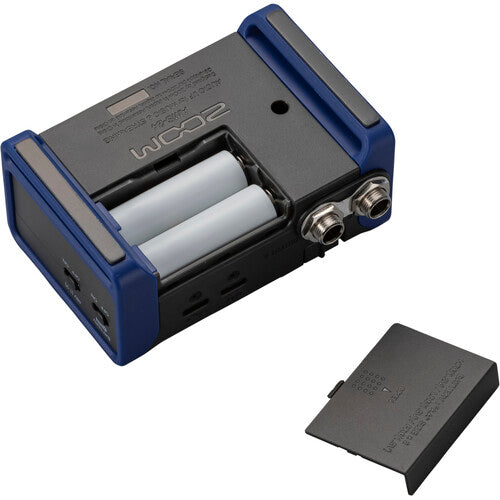

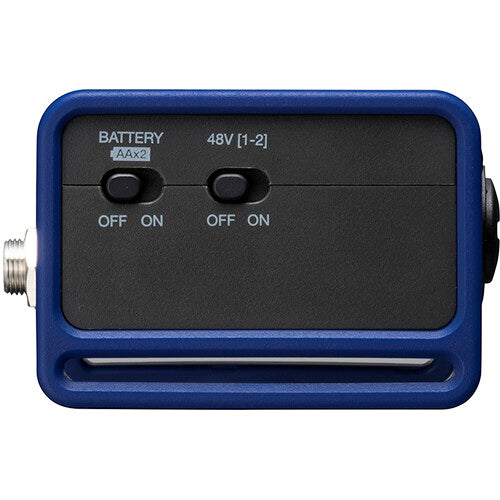

• Flexible power options: USB-C bus power, 2 × AA batteries, or optional AC adapter

Customer Benefits

You get powerful flexibility in a tiny package. Need to track vocals and guitar simultaneously? Use Music mode for separate routing. Want to stream gameplay or podcasts? Switch to Streaming mode to send apps and mic audio as one feed. With dual headphone outputs and loopback support, you can record, monitor, and broadcast without needing extra mixers or routing software.

Quick Specs

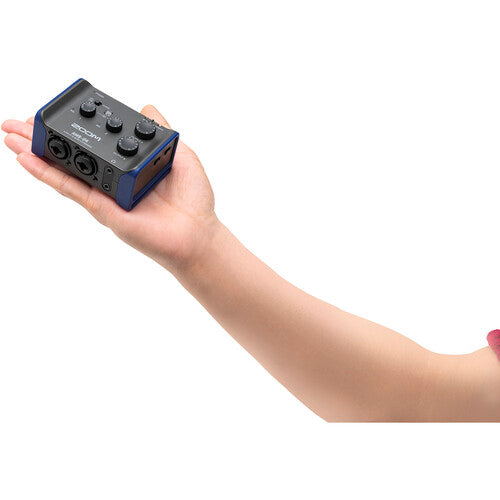

• Dimensions (W × D × H): 9.45 × 7.40 × 4.60 cm
• Weight (unit only): 134 g

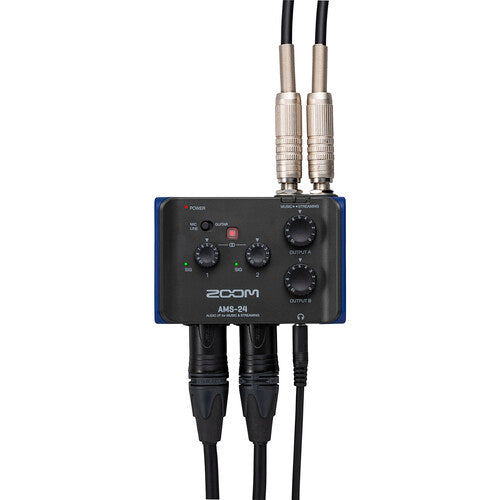

• Inputs: 2 × XLR/TRS combo (mic/line/instrument) with +48V phantom power

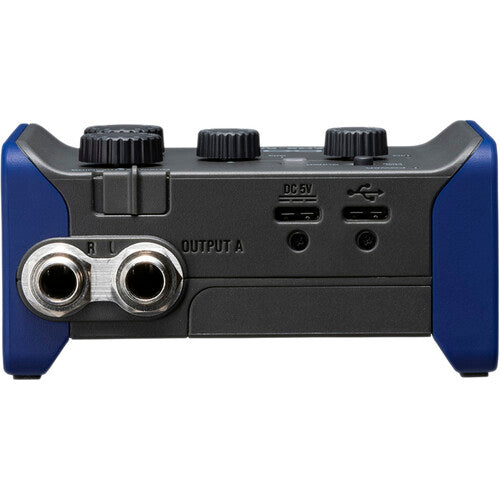

• Outputs: 2 × TRS stereo outputs (line), 2 × 3.5 mm headphone jacks
• Audio resolution: 24-bit / 96 kHz
• Power options: USB-C, 2 × AA batteries, optional AC adapter (5 V)
• Modes & features: Music / Streaming switch, Direct Monitor, Loopback, Stereo Link mode

What’s in the Box

• Zoom AMS-24 interface unit
• USB-C cable
• Quick Start Guide / documentation

Use Cases / Ideal For

Designed for mobile creators, podcasters, musicians, and streamers who demand a compact yet full-featured interface. Perfect for capturing vocals and instruments on the go, monitoring with two headphones, or live streaming with playback and mic combined.

Compatibility

Class-compliant USB audio device compatible with macOS, Windows, iOS, and Android. No drivers needed on macOS; Windows driver installer available. With the USB-C port, it works seamlessly with laptops, tablets, or phones. AA battery power enables use without USB power sources.

Pros & Cons

✅ Pros:

• Compact but powerful I/O for both recording and streaming
• Seamless mode switching between Music and Streaming use cases
• Loopback and direct monitoring built-in – no software routing required
• Dual headphone outputs ideal for collaborative recording or monitoring
• Flexible power options (USB, batteries, optional AC) for mobile use

⚠️ Cons:

• No onboard DSP effects (e.g. reverb, EQ) — all processing must be handled downstream
• Battery runtime is limited under phantom power and heavy use
• No MIDI I/O — purely audio / USB interface

The Zoom AMS-24 is a powerhouse in a small footprint — engineered to switch smoothly between recording and streaming, while giving you flexible I/O and monitoring capabilities wherever you work.
